Releases & Environments

Manage the complete release lifecycle with CI/CD automation, environment promotion, and quality gates.

Overview

M3 Forge provides a unified release pipeline for deploying workflows, agents, and processors across environments. The release system ensures:

Consistent deployments with versioned artifacts
Quality gates to prevent broken code from reaching production
Environment isolation between development, staging, and production
Rollback capability for quick recovery from issues
Audit trail for compliance and accountability

All releases follow a structured 4-stage pipeline from pull requests through production deployment.

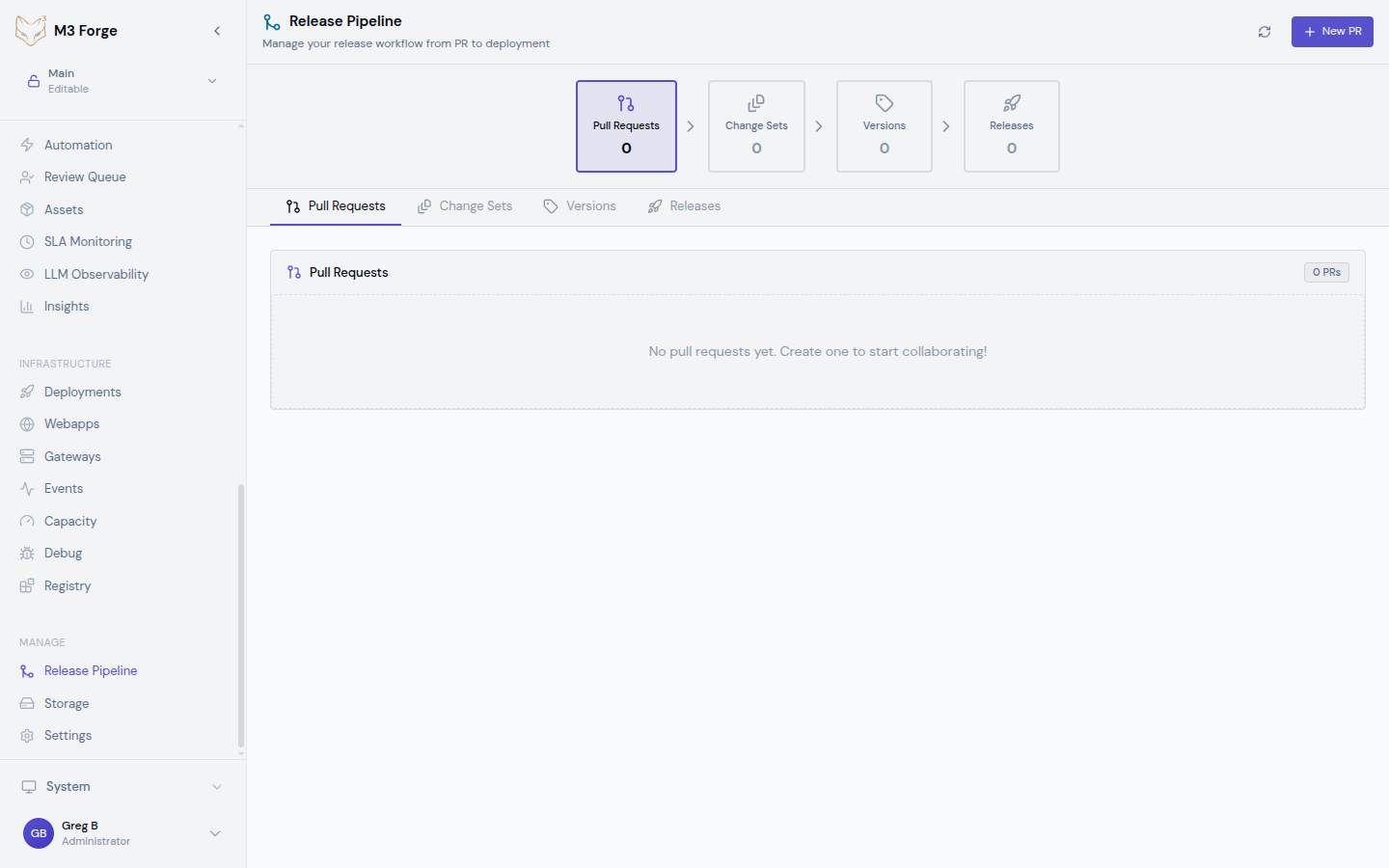

Release pipeline showing 4-stage flow: Pull Requests → Change Sets → Versions → Releases with status indicators

Release Philosophy

M3 Forge treats AI workflows as production software:

Version control - All workflow definitions stored in Git
Code review - Pull requests required for changes
Automated testing - Quality gates run before promotion
Staged rollout - Deploy to staging before production
Observability - Full monitoring of deployed workflows

This approach brings software engineering discipline to AI operations.

4-Stage Release Pipeline

The release pipeline consists of four stages:

1. Pull Requests

Developers propose changes via Git pull requests. Each PR includes:

Workflow definition changes (DAG JSON)
Agent configuration updates
Processor modifications
Documentation

Pull requests trigger automated checks and require peer review before merging.

2. Change Sets

Merged PRs are grouped into change sets that represent logical units of work. A change set might include:

Multiple workflow updates
Agent configuration for those workflows
Shared processor dependencies

Change sets enable deploying related changes together atomically.

3. Versions

Change sets are packaged into versioned releases using semantic versioning:

Major (v2.0.0) - Breaking changes to workflow interfaces
Minor (v1.3.0) - New workflows or backward-compatible features
Patch (v1.2.1) - Bug fixes and performance improvements

Each version is immutable and can be deployed to any environment.

4. Releases

Versions are deployed to environments as releases. Each release tracks:

Version being deployed
Target environment (dev, staging, production)
Deployment timestamp
Deployment status (pending, in-progress, succeeded, failed)
Rollback capability to previous version

Environment Model

M3 Forge supports multiple isolated environments:

Environment	Purpose	Stability	Data
Development	Feature testing, experimentation	Unstable	Synthetic test data
Staging	Pre-production validation	Stable	Production-like data
Production	Live user-facing workflows	Highly stable	Real customer data

Each environment has:

Isolated database - Separate PostgreSQL schema or database
Independent gateways - Dedicated Marie-AI backend instances
Environment variables - Secrets and config specific to environment
Access controls - Role-based permissions for who can deploy

Environments can share infrastructure (database server, S3 storage) while maintaining logical isolation through schemas and namespaces.

Versioning Strategy

M3 Forge uses semantic versioning (semver) for workflows:

Version Format


v<major>.<minor>.<patch>[-<prerelease>][+<build>]

Examples:
- v1.0.0 - Initial stable release
- v1.1.0 - New workflow added
- v1.1.1 - Bug fix
- v2.0.0-beta.1 - Pre-release breaking change
- v1.2.3+20240319 - Release with build metadata

When to Bump

Major version:

Workflow input/output schema changes (breaking API)
Removal of nodes or connections
Behavior changes that affect downstream consumers

Minor version:

New workflows added
New optional nodes in existing workflows
Backward-compatible enhancements

Patch version:

Bug fixes
Performance optimizations
Documentation updates

Tagging

Versions are Git tags pointing to specific commits:


# Create version tag
git tag -a v1.2.0 -m "Release v1.2.0: Add invoice classification workflow"
git push origin v1.2.0

M3 Forge automatically creates versions from tags pushed to the repository.

Key Features

Atomic Deployments

All changes in a version are deployed together. Either:

All workflows and agents deploy successfully, or
Nothing is deployed (automatic rollback on failure)

This prevents partial deploys that leave the system in an inconsistent state.

Rollback

If a release causes issues, quickly rollback to the previous version:

One-click rollback from the Release Pipeline UI
Preserves data - Only reverts workflow definitions, not execution history
Instant activation - Previous version immediately becomes active

Rollback only reverts workflow definitions. Database schema changes must be handled separately with migration rollback scripts.

Deployment Approval

Configure manual approval requirements for production releases:

Reviewers - Designated team members who can approve
Approval count - Number of approvals required (e.g., 2 approvers)
Timeout - Auto-reject if not approved within time limit

This adds human oversight to critical deployments.

Deployment Workflow

A typical release workflow:

Develop - Create workflow in dev environment
Test - Validate with synthetic data and automated tests
Pull Request - Submit PR with workflow changes
Review - Team reviews DAG definition and test coverage
Merge - PR merged to main branch
Create Version - Tag commit as v1.2.0
Deploy to Staging - Release v1.2.0 to staging environment
Staging Validation - Run smoke tests with production-like data
Deploy to Production - Release v1.2.0 to production after approval
Monitor - Watch metrics and SLAs for regressions

Access Control

Role-based permissions control who can perform release actions:

Role	Pull Requests	Create Versions	Deploy to Dev	Deploy to Staging	Deploy to Production
Developer	✓	✗	✓	✗	✗
Maintainer	✓	✓	✓	✓	✗
Admin	✓	✓	✓	✓	✓

Configure roles in Settings → Team → Access Control.

Compliance and Auditing

All release activities are logged for compliance:

Audit Events

Version created - Who created, when, which commits included
Deployment started - Who initiated, target environment, version
Deployment completed - Success/failure, duration, artifacts deployed
Rollback executed - Who triggered, reason, previous version restored
Approval granted/denied - Who reviewed, decision, timestamp

Audit Queries

View audit trail in Admin → Audit Log or query programmatically:


# Get all production deployments
curl -H "Authorization: Bearer $TOKEN" \
  "http://localhost:3500/api/audit?action=deployment&environment=production&start=2024-03-01"
