Gateways

Gateways are the connection points between M3 Forge and Marie-AI processing backends. They serve as the foundation for infrastructure monitoring, event streaming, capacity management, and deployment operations.

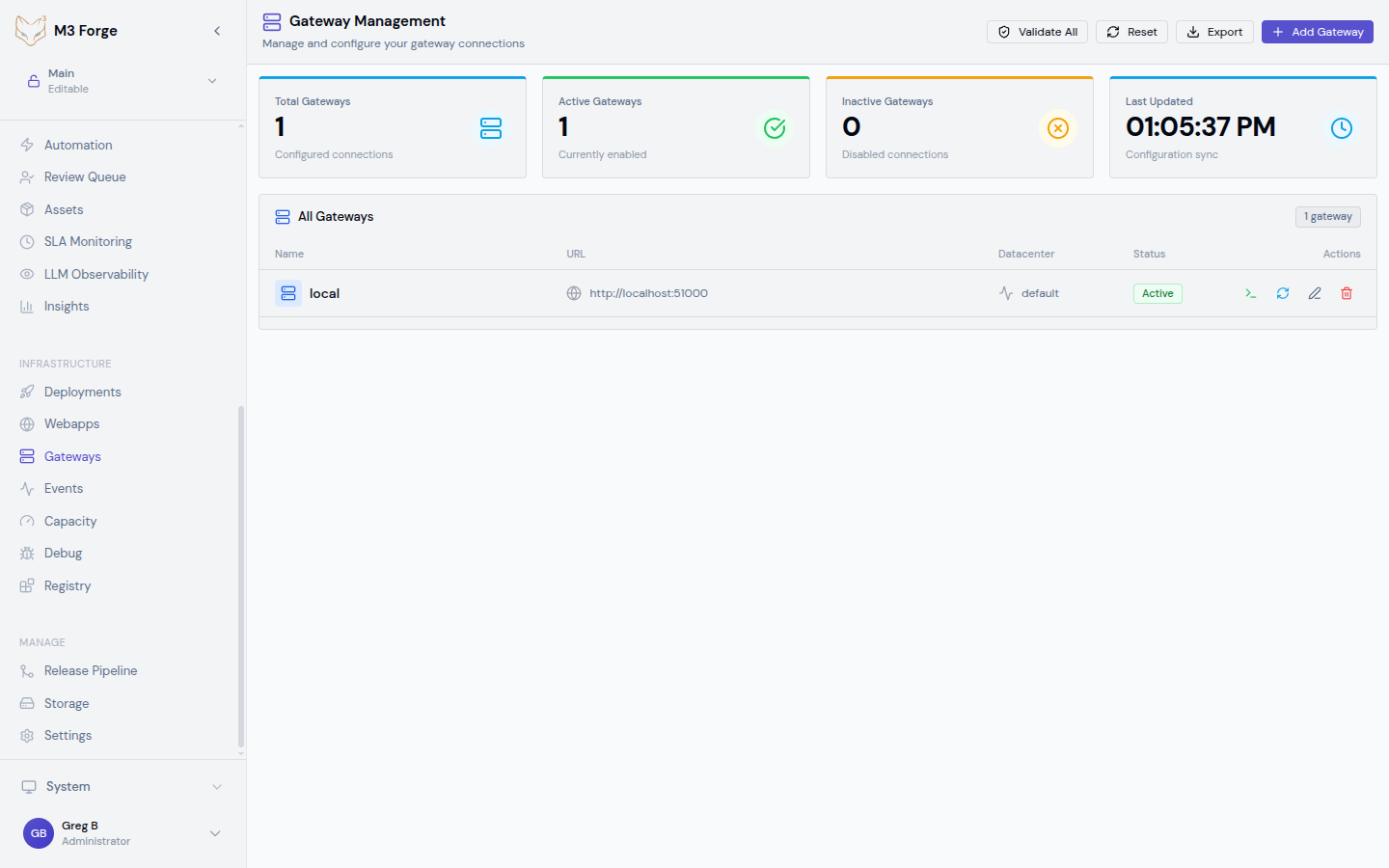

Gateway configuration dashboard showing status cards, connection list, and management controls

Overview

A gateway represents a Marie-AI backend instance that M3 Forge communicates with. Each gateway has:

Name: Human-readable identifier
URL/Endpoint: The backend service address
Datacenter: Geographic or logical location
Status: Real-time connection state (connected/disconnected/testing)
Bearer Token: Authentication credential for SSE connections

Gateways enable other Infrastructure features:

Events: Real-time event streaming from connected gateways
Capacity: Resource monitoring across gateways
Debug: Diagnostic tools for gateway services
Registry: Service discovery and registration
Deployments: Managing Marie-AI service deployments

Accessing Gateways

Navigate to Infrastructure → Gateways from the main navigation.

The gateway dashboard displays:

Status Cards: Quick metrics showing total gateways, connected count, active connections, and last update time
Gateway List: Table of all configured gateways with connection details
Management Controls: Add, edit, test, and delete gateways

Adding a Gateway

Click “Add Gateway”

Opens the gateway configuration form.

Enter Gateway Details

Name: Descriptive name for the gateway (e.g., “Production US-East”)
URL: Full endpoint URL (validated format, e.g., https://api.marie.ai:8080)
Datacenter: Location identifier (e.g., “us-east-1”, “eu-central”)
Bearer Token: Authentication token for SSE connections (optional)

The URL is validated on input. Ensure it includes the protocol (https:// or http://) and correct port if non-standard.

Save Configuration

The gateway is added to the list and immediately tested for connectivity.

Connection Testing

Test gateway connectivity to verify backend availability and authentication.

Individual Gateway Testing

Click Test next to any gateway in the list to check its connection status. The system performs:

Health check request to the gateway endpoint
Bearer token validation (if configured)
Connection latency measurement

Visual feedback shows testing progress and results.

Batch Testing

Use Test All Gateways to run health checks across all configured gateways simultaneously. Useful for:

Verifying configuration after updates
Diagnosing network issues
Monitoring backend availability

Managing Gateways

Editing a Gateway

Click Edit next to the gateway
Modify any configuration field
Save to update and re-test the connection

Connection history is preserved when editing.

Deleting a Gateway

Click Delete and confirm removal.

Deleting a gateway removes it from all dependent features (Events, Capacity, Debug, etc.). Active connections are terminated.

Connection History

Each gateway maintains a connection log showing:

Connection/disconnection timestamps
Status changes
Test results
Error messages

Access via the history icon in the gateway row.

Bearer Token Authentication

Bearer tokens secure SSE (Server-Sent Events) connections between M3 Forge and gateways.

How It Works

Token is configured in the gateway settings
M3 Forge stores the token in browser localStorage
Token is sent in the Authorization header for SSE requests
Gateway validates the token before streaming events

Bearer tokens are stored in browser localStorage. Never share tokens or access M3 Forge from untrusted devices.

Setting a Token

When adding or editing a gateway, enter the bearer token provided by your Marie-AI administrator. If the field is left empty, the connection attempts without authentication (only works if the gateway allows unauthenticated access).

Token Rotation

To rotate a token:

Edit the gateway configuration
Replace the old token with the new one
Save the configuration

All active SSE connections are refreshed with the new token.

Import/Export Configurations

Share gateway configurations across environments or backup settings.

Exporting

Click Export in the gateway toolbar
Select gateways to export (or export all)
Download the JSON configuration file

The export includes:

Gateway names and URLs
Datacenter assignments
Connection settings (tokens are not exported for security)

Importing

Click Import
Select a previously exported JSON file
Review the gateways to be imported
Confirm import

Importing does not overwrite existing gateways with the same name. You must manually delete duplicates or rename conflicting entries.

Reset to Default

Click Reset to Default to restore the default gateway configuration. This removes all custom gateways and reinstates the factory settings.

This action cannot be undone. Export your current configuration before resetting.

Integrated Terminal

The terminal panel provides direct command execution on connected gateways.

Opening the Terminal

Click the Terminal icon in the gateway toolbar to open the integrated terminal panel at the bottom of the screen.

Using the Terminal

Select Gateway: Choose which gateway to execute commands on
Enter Commands: Type commands as if SSH’d into the backend
View Output: Real-time command output streams to the terminal
Resize Panel: Drag the panel divider to adjust terminal height

Example commands:


# Check gateway version
marie --version

# View running services
marie service list

# Check system resources
marie system status

Closing the Terminal

Click the close icon or drag the panel to minimum height.

tRPC Integration

Gateways are managed via tRPC endpoints:

gateways.getConfig: Retrieve all gateway configurations
gateways.updateConfig: Save gateway configuration changes

These endpoints handle validation, storage, and real-time updates across the application.

Troubleshooting

Gateway Shows “Disconnected”

Check:

Gateway URL is correct and accessible from your network
Backend service is running
Firewall rules allow traffic to the gateway port
Bearer token is valid (if authentication is enabled)

Test:

Click Test next to the gateway
Review error message in the connection history
Verify URL and token configuration

Connection Keeps Dropping

Possible causes:

Network instability
Backend restarts or deployments
Load balancer timeouts
Invalid or expired bearer token

Solutions:

Check network connectivity
Review gateway logs for service interruptions
Increase SSE timeout settings (if configurable on backend)
Rotate bearer token

”Bearer Token Invalid” Error

Solutions:

Verify the token is correctly copied (no extra spaces)
Confirm the token has not expired
Check backend logs for authentication failures
Request a new token from your administrator

Batch Test Hangs

If testing all gateways times out:

Reduce concurrent test limit (if configurable)
Test gateways individually to isolate problematic ones
Check for network issues blocking some endpoints

Import Fails

Common issues:

Invalid JSON format in import file
Missing required fields (name, URL)
Duplicate gateway names

Solution: Validate the JSON structure matches the export format before importing.

Best Practices

Use descriptive names: Include environment and location (e.g., “Prod-US-West”, “Staging-EU”)
Test regularly: Run batch tests after configuration changes or deployments
Export configurations: Back up gateway settings before major changes
Rotate tokens: Periodically update bearer tokens for security
Monitor connection history: Review logs to identify recurring issues
Limit gateways: Only configure gateways you actively use to reduce noise

Next Steps

Events: Monitor real-time events from connected gateways
Capacity: Track resource usage across gateways
Debug: Diagnostic tools for gateway services
