Webapps

Manage webapp runners and deployed web applications with full lifecycle control, real-time logs, and Git integration.

What are Webapps?

Webapps provides a platform for deploying and managing web applications on top of M3 Forge infrastructure. Think of it as a self-hosted Hugging Face Spaces or Streamlit Cloud — you can deploy interactive AI demos, data science dashboards, and custom web UIs alongside your workflows.

Key features:

• Multi-framework support - Gradio, Streamlit, FastAPI, static sites, custom Docker containers
• Git integration - Deploy directly from Git repositories with branch tracking
• Lifecycle management - Start, stop, redeploy with a single click
• Real-time logs - SSE-based log streaming for each webapp
• Runner infrastructure - Dedicated webapp runners with health monitoring
• Deployment history - Track past deployments with timestamps and outcomes

Use Cases

Webapps is ideal for:

App Types

Webapps supports multiple application frameworks:

Gradio

Python framework for ML demos with automatic UI generation.

Characteristics:

• Language: Python
• Default port: 7860
• Auto-detected from: requirements.txt containing gradio + Python files with gr.Interface
• Typical startup command: python app.py

Best for: Quick ML model demos, image/text processing UIs, chatbots

Example:

import gradio as gr

def extract_text(image):
    # Call M3 Forge extraction API
    return extracted_text

gr.Interface(fn=extract_text, inputs="image", outputs="text").launch()

Streamlit

Python framework for data science dashboards with reactive components.

Characteristics:

• Language: Python
• Default port: 8501
• Auto-detected from: requirements.txt containing streamlit + Python files with import streamlit
• Typical startup command: streamlit run app.py

Best for: Analytics dashboards, data exploration UIs, workflow monitoring

Example:

import streamlit as st

st.title("Workflow Analytics")
workflows = fetch_workflows()  # Call tRPC API
st.dataframe(workflows)

FastAPI

Modern Python web framework with automatic OpenAPI documentation.

Characteristics:

• Language: Python
• Default port: 8000
• Auto-detected from: requirements.txt containing fastapi + main.py or app.py
• Typical startup command: uvicorn main:app --host 0.0.0.0 --port 8000

Best for: REST APIs, webhook receivers, custom backend services

Example:

from fastapi import FastAPI

app = FastAPI()

@app.post("/webhook")
async def handle_webhook(data: dict):
    # Process webhook and trigger workflow
    return {"status": "processed"}

Static

Plain HTML/CSS/JS sites served with nginx or simple HTTP server.

Characteristics:

• Language: HTML/CSS/JS (or pre-built frameworks like React/Vue)
• Default port: 8080
• Auto-detected from: index.html at repo root with no Python/Node dependencies
• Typical startup command: python -m http.server 8080 or nginx

Best for: Documentation sites, landing pages, pre-built React/Vue apps

Custom Docker

Bring your own Docker container with full control over environment.

Characteristics:

• Language: Any
• Default port: Specified in Dockerfile EXPOSE or config
• Auto-detected from: Dockerfile present in repo root
• Typical startup command: Defined in Dockerfile CMD or ENTRYPOINT

Best for: Complex multi-service apps, non-Python/Node frameworks (Go, Rust, etc.), custom dependencies

Accessing Webapps

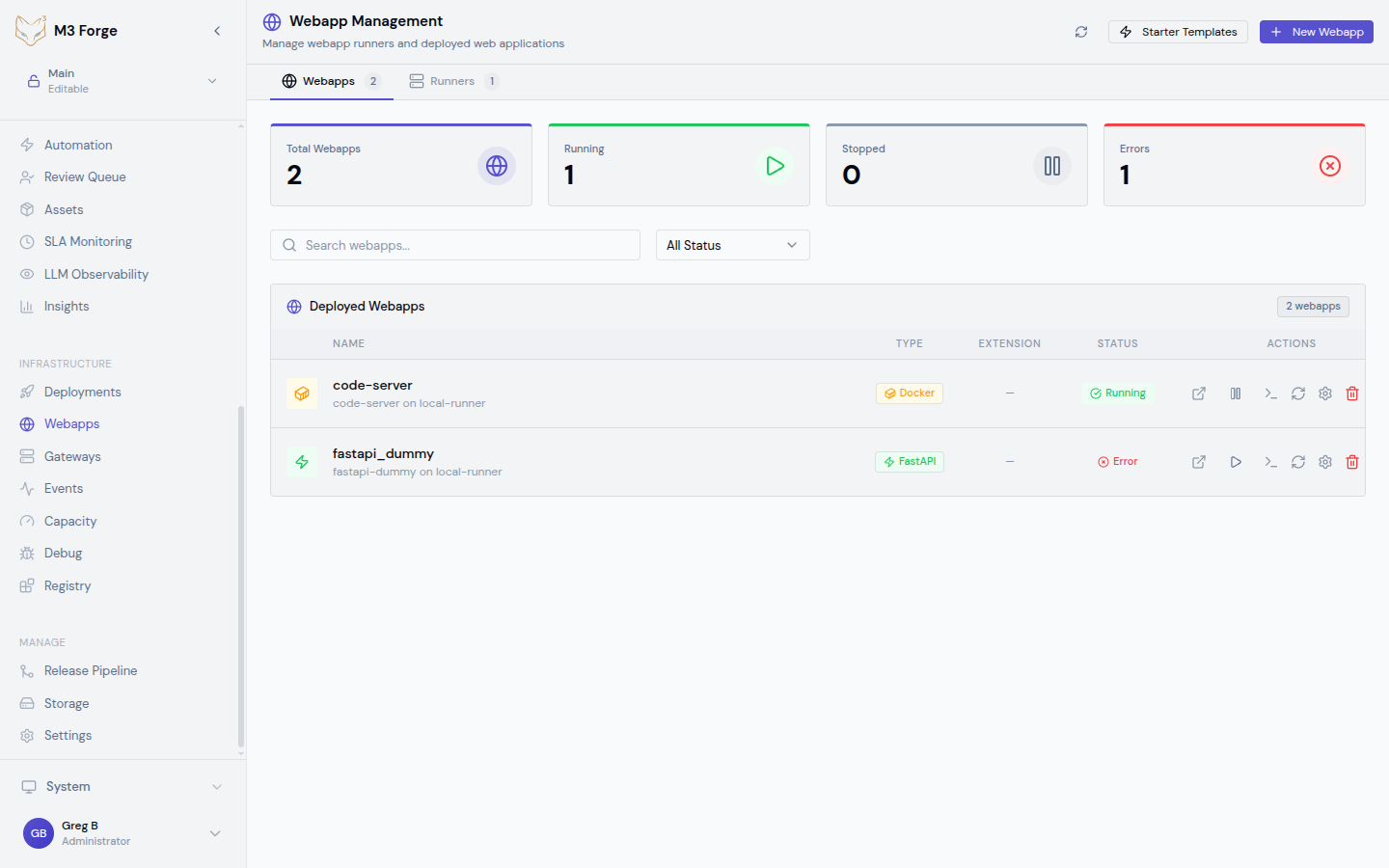

Navigate to Infrastructure > Webapps in the sidebar. The page has two main tabs:

Webapps Tab

Lists all deployed webapps with:

• Name - Webapp identifier
• Status - Running, Stopped, Error, Building
• Type - App framework (Gradio, Streamlit, etc.)
• URL - Click to open webapp in new tab
• Actions - Start, Stop, Redeploy, View Logs, Delete

Runners Tab

Lists webapp runner instances with:

• Runner ID - Unique runner identifier
• Health Status - Healthy, Unhealthy, Unknown
• Capabilities - Supported app types
• Webapp Count - Number of webapps running on this runner
• Uptime - Time since runner started

Creating a Webapp

Click New Webapp to open the creation form:

API_KEY=sk_prod_abc123
DATABASE_URL=postgresql://...
DEBUG=false

Click Create to start deployment. Webapp will transition through states: building → starting → running.

Webapp Lifecycle

Webapps have the following states:

Building

Initial deployment phase where M3 Forge:

1. Clones Git repo or extracts uploaded ZIP
2. Detects app type if auto-detect enabled
3. Builds Docker container with dependencies
4. Pushes container to internal registry

Typical duration: 2-5 minutes depending on dependencies

Logs show: Dependency installation, Docker build steps, push progress

Starting

Container launch phase where runner:

1. Pulls built container image
2. Starts container with environment variables
3. Waits for health check to pass (HTTP GET to webapp port)
4. Registers webapp in internal DNS

Typical duration: 30-60 seconds

Logs show: Container startup, application initialization, port binding

Running

Webapp is live and serving traffic. Users can access via URL.

Health checks: Every 30 seconds via HTTP GET to / or /health

Actions available:

• Stop - Gracefully shut down container
• Redeploy - Rebuild and restart (e.g., after Git push)
• View Logs - Open log viewer side panel
• Delete - Permanently remove webapp

Stopped

Webapp intentionally stopped, not serving traffic.

Actions available:

• Start - Resume from stopped state (no rebuild)
• Delete - Permanently remove webapp

Error

Webapp failed health checks or crashed during runtime.

Common causes:

• Application crash (check logs for stack traces)
• Port binding conflict (another webapp using same port)
• Out of memory (increase memory limit)
• Dependency installation failure (check build logs)

Actions available:

• View Logs - Diagnose error from application logs
• Redeploy - Attempt rebuild and restart
• Delete - Remove failed webapp

Log Viewing

Click View Logs for any webapp to open the log viewer side panel.

Log Features

• Real-time streaming - SSE-based log tail with auto-scroll
• Historical logs - Scroll up to view past log lines
• Timestamps - Each line prefixed with ISO timestamp
• Color coding - ERROR (red), WARN (yellow), INFO (blue), DEBUG (gray)
• Search - Filter logs by keyword
• Download - Export logs as .txt file

Log Retention

Logs are stored according to these policies:

Git Integration

For webapps deployed from Git repositories, M3 Forge provides Git status tracking.

Git Status Panel

View Git repository information for each webapp:

• Repository URL - Git remote origin
• Current branch - Deployed branch name
• Latest commit - Commit hash and message
• Branch status - Ahead/behind remote
• Working tree - Clean or dirty (uncommitted changes)

Branch Status

M3 Forge fetches remote branch status every 5 minutes:

Ahead of remote:

• Local commits not pushed to remote
• Indicator: ↑ 3 commits ahead

Behind remote:

• Remote has new commits not in local branch
• Indicator: ↓ 2 commits behind
• Action: Click Redeploy to pull latest commits

Diverged:

• Local and remote have different commits
• Requires manual intervention (force push or reset)

Auto-Deploy on Push

Enable webhook-based auto-deploy:

1. Copy webhook URL from webapp settings
2. Add webhook to Git repository (GitHub/GitLab/Bitbucket)
3. On push to watched branch, M3 Forge automatically redeploys webapp

Webhook payload:

{
  "event": "push",
  "branch": "main",
  "commit": "abc123...",
  "repository": "https://github.com/user/repo.git"
}

Deployment History

View past deployments for each webapp:

History Table

• Deployment ID - Unique identifier
• Timestamp - When deployment started
• Trigger - Manual, webhook, or scheduled
• Status - Success, Failed, Cancelled
• Duration - Time from start to completion
• Commit - Git commit hash (for Git-based webapps)

Deployment Details

Click any deployment to see:

• Build logs - Full build output
• Environment variables - Env vars at deployment time
• Resource usage - CPU/memory during build
• Artifacts - Built Docker image tag, size

Rollback

Revert to a previous deployment:

1. Find successful deployment in history
2. Click Rollback
3. Webapp rebuilds from that Git commit or uploaded source

Webapp Runners

Runners are the execution engines that host webapps. Each runner can host multiple webapps and provides isolation via Docker containers.

Runner Architecture

Runner Health

Runners report health every 30 seconds:

Healthy indicators:

• HTTP 200 response to health endpoint
• CPU < 80%, Memory < 80%
• Docker daemon responsive

Unhealthy indicators:

• Health check timeout (>5 seconds)
• CPU > 90% sustained
• Docker daemon unresponsive

Runner Capabilities

Each runner advertises capabilities:

• App types - Which frameworks supported (Gradio, Streamlit, etc.)
• Max webapps - Concurrent webapp limit (default: 10)
• Resources - Total CPU/memory available
• GPU support - Whether GPUs available

Webapp placement respects runner capabilities — if no runner supports requested app type, deployment fails.

Resizable Side Panel

The webapp detail panel is resizable for flexible viewing:

• Drag handle - Click and drag edge to resize
• Keyboard shortcuts:
  • Ctrl+[ - Decrease width
  • Ctrl+] - Increase width
  • Escape - Close panel

File Upload

When creating webapp via file upload:

Upload Process

zip -r webapp.zip app.py requirements.txt static/ templates/

Monaco Editor

For viewing webapp configuration and code, M3 Forge includes Monaco Editor (VS Code’s editor engine).

Features

• Syntax highlighting - Python, JavaScript, HTML, YAML, JSON
• Code folding - Collapse/expand code blocks
• Search and replace - Find across files
• Read-only mode - View code without editing (editing via Git)

Use Cases

• View requirements.txt - Inspect dependencies before deployment
• Check Dockerfile - Understand custom Docker build steps
• Review environment config - Verify env vars before webapp start

Troubleshooting

Webapp Stuck in Building

Cause: Dependency installation timeout or build error.

Solution:

1. View build logs for error messages
2. Check requirements.txt or package.json for invalid dependencies
3. Increase build timeout in runner config
4. Retry build after fixing dependency issues

Webapp Crashes on Startup

Cause: Application code error or missing environment variable.

Solution:

1. View runtime logs for stack trace
2. Verify all required environment variables set
3. Test webapp locally before deploying
4. Increase memory limit if out-of-memory error

Cannot Access Webapp URL

Cause: Port conflict, firewall, or DNS issue.

Solution:

1. Check webapp status is Running (not Stopped or Error)
2. Verify port in webapp config matches application listening port
3. Test runner health in Runners tab
4. Check network policies allow traffic to runner

Git Webhook Not Triggering

Cause: Webhook URL incorrect or authentication failure.

Solution:

1. Copy webhook URL from webapp settings (includes auth token)
2. Verify webhook added to Git repository settings
3. Check webhook delivery logs in GitHub/GitLab
4. Test webhook manually: curl -X POST <webhook_url> -d '{"event":"push"}'

Runner Shows Unhealthy

Cause: Resource exhaustion or Docker daemon failure.

Solution:

1. Check runner resource usage (CPU/memory)
2. Restart Docker daemon on runner host
3. Reduce number of webapps on runner
4. Scale up runner resources or add additional runner

Best Practices

Webapp Naming

Use descriptive, hierarchical names:

<team>-<purpose>-<env>

Examples:

• ml-team-demo-gradio-prod
• analytics-dashboard-staging
• docs-site-prod

This enables:

• Clear ownership and purpose from name
• Easy filtering and search
• Automated resource tagging

Resource Allocation

Set appropriate resource limits:

Overprovisioning wastes resources; underprovisioning causes crashes.

Environment Variables

Store secrets securely:

• Use secret management - Reference secrets from Vault/AWS Secrets Manager, don’t hardcode
• Least privilege - Only grant webapp access to secrets it needs
• Rotate regularly - Update API keys quarterly
• Audit access - Log when webapp reads sensitive env vars

Git Workflow

For production webapps:

• Use protected branches - Require PR approval before merging to main
• Tag releases - Use Git tags for version tracking
• Test before merge - Deploy to staging webapp first
• Enable auto-deploy - Webhook from main branch for continuous deployment

Monitoring

Track webapp health:

• Set up alerts - Slack/email notification when webapp enters Error state
• Monitor logs - Review error logs weekly for patterns
• Track uptime - Use external uptime monitoring (Pingdom, UptimeRobot)
• Cost tracking - Monitor runner resource usage and webapp count

Next Steps

• Configure webapp runners for deployment infrastructure
• View real-time logs for all webapps
• Track events for webapp lifecycle changes
• Monitor capacity to ensure sufficient runner resources
