Events

Events provides dual-mode monitoring for Marie-AI backend activity — real-time streaming for live observation and historical search for post-incident analysis.

Overview

The Events page connects to configured Gateways to collect and display system events, logs, and metrics from Marie-AI backends.

Two Modes:

• Live Tab: Real-time Server-Sent Events (SSE) stream from connected gateways
• History Tab: Query and analyze historical events stored in ClickHouse

Events enable:

• Monitoring backend health and activity
• Debugging issues as they occur
• Investigating past incidents
• Tracking event patterns and anomalies
• Exporting data for external analysis

Accessing Events

Navigate to Infrastructure → Events from the main navigation.

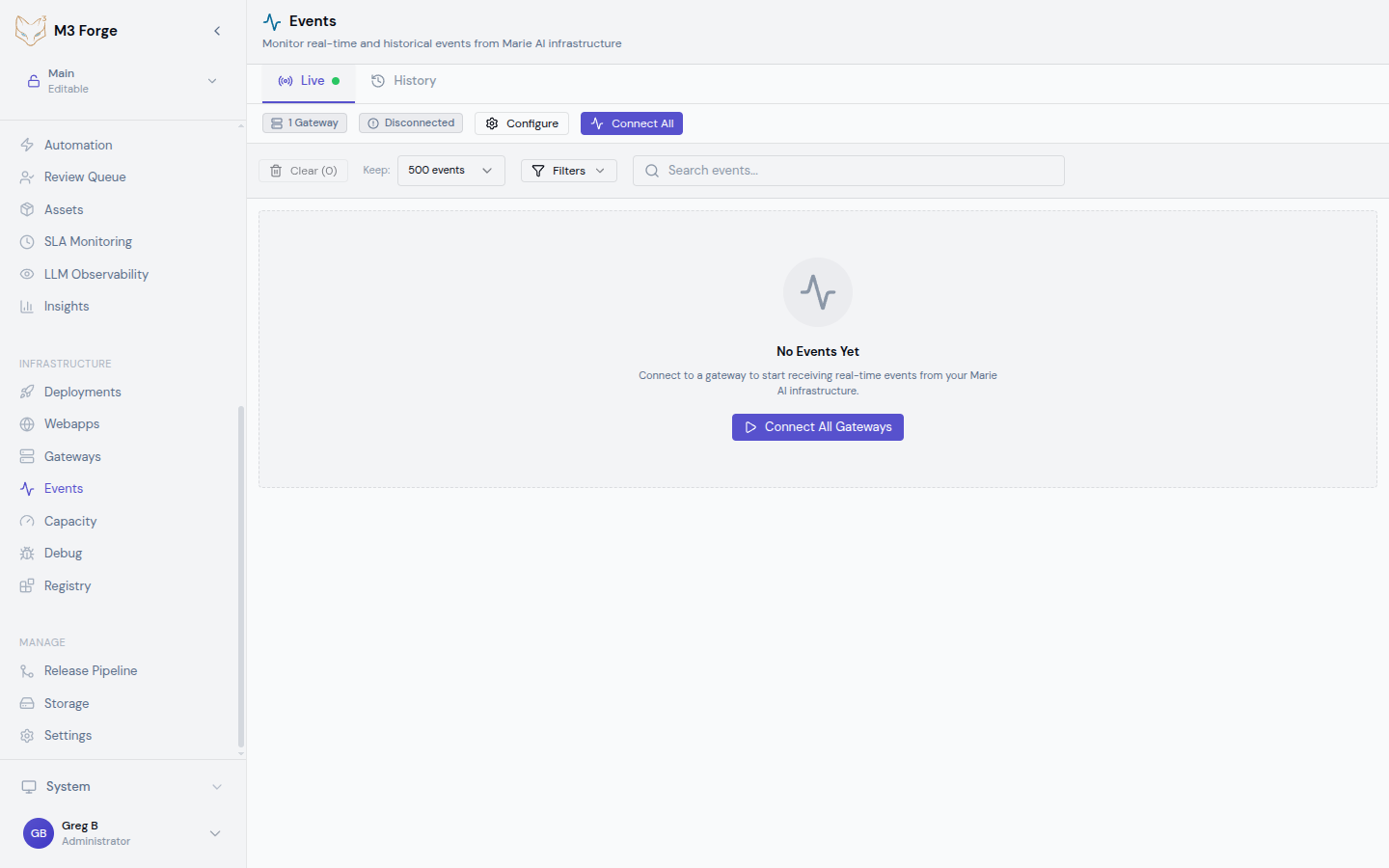

The interface displays two tabs:

1. Live: Real-time event streaming
2. History: Historical event search

Live Tab

Real-time event monitoring streams events directly from connected gateways via SSE.

Metric Cards

The Live tab header displays key metrics:

• Event Count: Total events received in current session
• Connection Status: Number of connected/disconnected gateways
• Event Rate: Events per second (rolling average)
• Uptime: Time since streaming started

Event Stream

Events appear in a scrollable list, newest first (or oldest first if auto-scroll is disabled).

Each event row shows:

• Timestamp: When the event occurred
• Severity Indicator: Color-coded badge (error, warning, info, debug)
• Event Type: Category badge (e.g., “processor.start”, “queue.overflow”)
• Source: Gateway that emitted the event
• Message: Event description or log message
• Expand Icon: Click to view full JSON payload

Filtering Events

By Source: Use the source dropdown to show events from specific gateways only. Useful when monitoring a particular backend.

By Search: Enter text in the search bar to filter events by:

• Message content
• Event type
• Source name
• JSON payload (in expanded view)

Search is case-insensitive and updates results in real-time.

Stream Controls

Pause/Resume: Click the pause button to stop receiving new events while reviewing current ones. Click resume to continue streaming.

Auto-Scroll: Toggle auto-scroll to control whether the view automatically scrolls to show newest events. Disable to manually inspect events without interruption.

Clear: Clear the current event list (does not affect history).

Event Details

Click the expand icon on any event to view its full JSON payload. This includes:

• Complete event metadata
• Structured log data
• Trace IDs and span information (for distributed tracing)
• Custom fields from the backend

Copy JSON: Click the copy icon to copy the full event JSON to clipboard.

Exporting Live Data

Export Visible Events: Click Export to download currently displayed events as:

• JSON (for programmatic analysis)
• CSV (for spreadsheets)

History Tab

Search and analyze historical events stored in ClickHouse.

Time Range Selection

Choose the time window for your search:

Relative Ranges:

• Last 1 hour
• Last 24 hours
• Last 7 days
• Last 30 days

Absolute Range: Click “Custom” to select specific start and end dates/times.

Search Filters

Event Type: Filter by event category (e.g., “processor.*”, “queue.overflow”).

Severity: Select one or more severity levels (error, warning, info, debug).

Gateway: Limit results to specific gateways.

Full-Text Search: Search event messages and payloads for keywords.

Results Table

Historical events display in a paginated table with columns:

• Timestamp: Event time (sortable)
• Severity: Color-coded indicator
• Type: Event category
• Gateway: Source backend
• Message: Event description
• Actions: Expand details, copy JSON

Pagination: Navigate through results using page controls. Default: 50 events per page.

Sorting: Click column headers to sort by timestamp, severity, or type.

Exporting Historical Data

Click Export to download search results:

• JSON: Full event data with all fields
• CSV: Flattened for spreadsheet analysis

Exports include all matching events (not just current page).

HyperDX Integration

For advanced analysis, click Open in HyperDX to view events in HyperDX’s observability platform. This provides:

• Correlated logs, traces, and metrics
• Advanced querying and visualization
• Alerting and anomaly detection

Architecture

Understanding the event pipeline helps troubleshoot issues and optimize monitoring.

Live Events Flow

Marie-AI Backend → SSE Connection → M3 Forge Frontend → Live Tab

1. Backend: Marie-AI emits events via Server-Sent Events (SSE)
2. Gateway: M3 Forge establishes SSE connection using bearer token
3. Frontend: Events stream in real-time to browser
4. Display: Live tab renders events with filtering and search

Authentication: Bearer tokens (configured in Gateways) authenticate SSE connections.

Connection Management: Connections are persistent. If dropped, M3 Forge automatically reconnects.

Historical Events Flow

Backend → OTELToastHandler → OTEL Collector → ClickHouse → tRPC API → History Tab

1. OTELToastHandler: Custom logging handler exports events as OTEL signals
2. OTEL Collector: Collects, processes, and routes events
3. ClickHouse: High-performance storage for time-series event data
4. tRPC API: Queries ClickHouse and returns results
5. History Tab: Displays results with filtering and export

Benefits:

• Long-term retention of events
• Fast querying across large datasets
• Integration with observability tools

Event Types

Common event types emitted by Marie-AI:

Troubleshooting

No Events in Live Tab

Check:

1. Gateway connection status (Infrastructure → Gateways)
2. Bearer token is valid
3. Backend is emitting events (check backend logs)
4. Firewall allows SSE connections

Test: Click Test Connection in the gateway settings to verify connectivity.

Live Stream Disconnects Frequently

Possible causes:

• Network instability
• Backend restarts
• Load balancer timeout
• Expired bearer token

Solutions:

• Check network quality
• Increase SSE timeout on backend/load balancer
• Rotate bearer token in gateway settings
• Review backend logs for connection errors

Events Not Appearing in History

Possible causes:

• OTEL pipeline not configured
• ClickHouse connection issues
• Events not within selected time range

Solutions:

1. Verify OTEL Collector is running and receiving events
2. Check ClickHouse connectivity and table schema
3. Expand time range to include older events
4. Review OTEL Collector logs for export errors

Search Returns No Results

Check:

• Time range includes the expected events
• Filters are not too restrictive (try removing filters)
• Events were actually emitted by backend during that period

Test: Remove all filters and expand time range to “Last 7 days” to verify data exists.

Export Fails or Is Empty

If export produces no data:

• Ensure events are visible in the UI before exporting
• Check browser console for errors
• Verify sufficient permissions (if role-based access is enabled)

If export times out:

• Reduce time range or add filters to limit result size
• Try exporting smaller batches

HyperDX Link Not Working

Possible causes:

• HyperDX integration not configured
• OTEL endpoints not enabled on gateway
• Invalid HyperDX URL

Solutions:

• Verify HyperDX configuration in gateway settings
• Enable OTEL export on backend
• Contact administrator for HyperDX access

Best Practices

• Use Live for active monitoring: Keep Live tab open during deployments or debugging
• Use History for investigations: Query specific time ranges when troubleshooting past incidents
• Filter by severity: Focus on errors and warnings to reduce noise
• Export critical events: Save evidence of incidents for post-mortems
• Leverage HyperDX: Use integrated observability for complex analysis
• Monitor event rate: Sudden spikes may indicate issues (check metric cards)
• Pause during analysis: Use pause/resume to review events without stream interruption
• Clear regularly: Clear Live tab periodically to maintain performance

Next Steps

• Gateways: Configure gateway connections for event streaming
• Capacity: Monitor resource usage alongside events
• Debug: Use debugging tools to investigate event causes
